1.模块联邦实战 #

1.1.动机 #

• Module Federation的动机是为了不同开发小组间共同开发一个或者多个应用
• 应用将被划分为更小的应用块，一个应用块，可以是比如头部导航或者侧边栏的前端组件，也可以是数据获取逻辑的逻辑组件
• 每个应用块由不同的组开发
• 应用或应用块共享其他其他应用块或者库

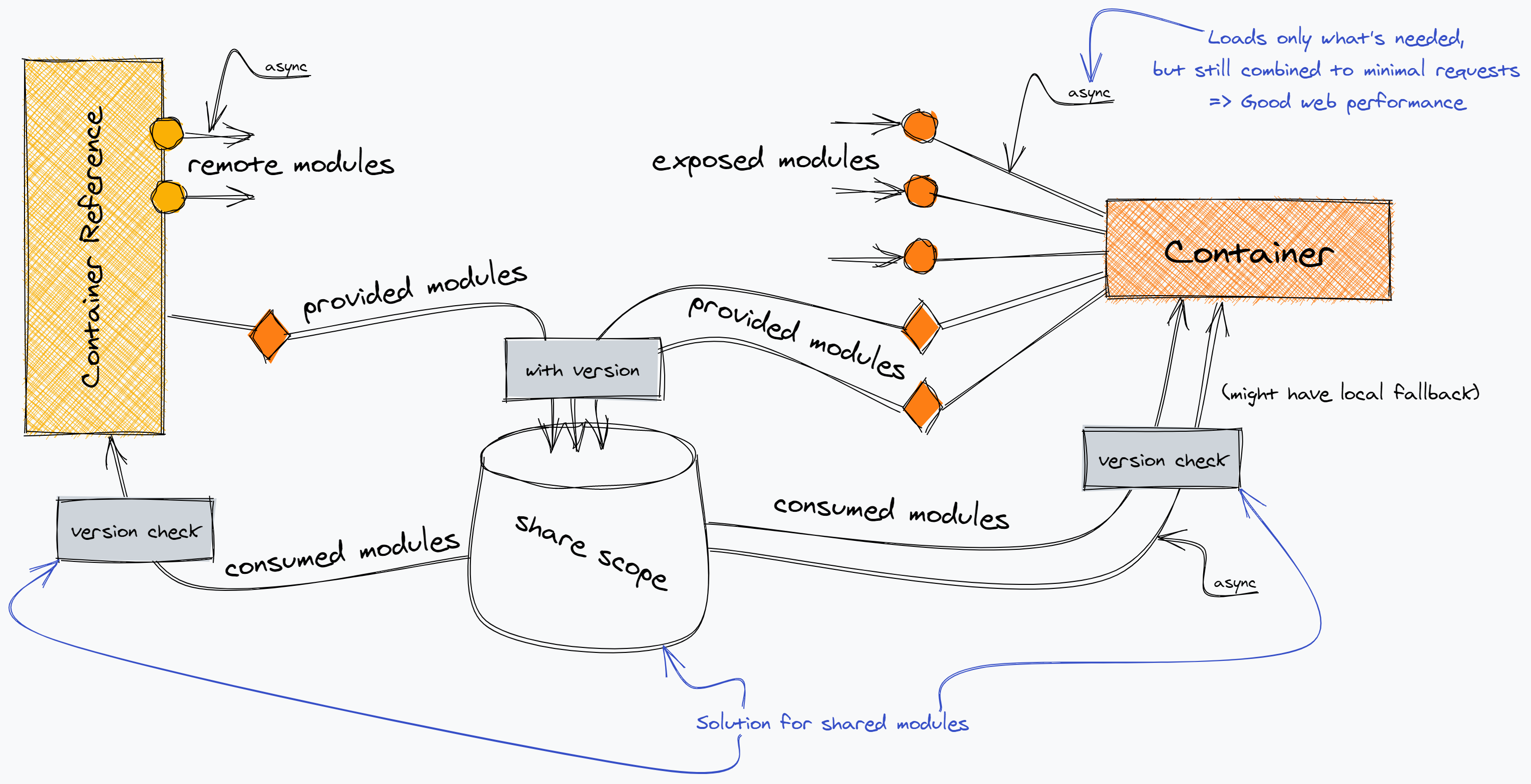

1.2.Module Federation #

• 使用Module Federation时，每个应用块都是一个独立的构建，这些构建都将编译为容器
• 容器可以被其他应用或者其他容器应用
• 一个被引用的容器被称为remote, 引用者被称为host，remote暴露模块给host, host则可以使用这些暴露的模块，这些模块被成为remote模块

1.3.实战 #

1.3.1 配置参数 #

字段	类型	含义
name	string	必传值，即输出的模块名，被远程引用时路径为${name}/${expose}
library	object	声明全局变量的方式，name为umd的name
filename	string	构建输出的文件名
remotes	object	远程引用的应用名及其别名的映射，使用时以key值作为name
exposes	object	被远程引用时可暴露的资源路径及其别名
shared	object	与其他应用之间可以共享的第三方依赖，使你的代码中不用重复加载同一份依赖

1.3.2 remote #

1.3.2.1 remote\webpack.config.js #

let path = require("path");
let webpack = require("webpack");
let HtmlWebpackPlugin = require("html-webpack-plugin");
const ModuleFederationPlugin = require("webpack/lib/container/ModuleFederationPlugin");
module.exports = {
    mode: "development",
    entry: "./src/index.js",
    output: {
        publicPath: "http://localhost:3000/",
    },
    devServer: {
        port: 3000
    },
    module: {
        rules: [
            {
                test: /\.jsx?$/,
                use: {
                    loader: 'babel-loader',
                    options: {
                        presets: ["@babel/preset-react"]
                    },
                },
                exclude: /node_modules/,
            },
        ]
    },
    plugins: [
        new HtmlWebpackPlugin({
            template:'./public/index.html'
        }),
        new ModuleFederationPlugin({
            filename: "remoteEntry.js",
            name: "remote",
            exposes: {
                "./NewsList": "./src/NewsList",
            }
          })
    ]
}

1.3.2.2 remote\src\index.js #

remote\src\index.js

import("./bootstrap");

1.3.2.3 remote\src\bootstrap.js #

remote\src\bootstrap.js

import React from "react";
import ReactDOM from "react-dom";
import App from "./App";
ReactDOM.render(<App />, document.getElementById("root"));

1.3.2.4 remote\src\App.js #

remote\src\App.js

import React from "react";
import NewsList from './NewsList';
const App = () => (
  <div>
    <h2>本地组件NewsList</h2>
    <NewsList />
  </div>
);

export default App;

1.3.2.5 remote\src\NewsList.js #

remote\src\NewsList.js

import React from "react";
export default ()=>(
    <div>新闻列表</div>
)

1.3.3 host #

1.3.3.1 host\webpack.config.js #

host\webpack.config.js

let path = require("path");
let webpack = require("webpack");
let HtmlWebpackPlugin = require("html-webpack-plugin");
const ModuleFederationPlugin = require("webpack/lib/container/ModuleFederationPlugin");
module.exports = {
    mode: "development",
    entry: "./src/index.js",
    output: {
        publicPath: "http://localhost:8000/",
    },
    devServer: {
        port: 8000
    },
    module: {
        rules: [
            {
                test: /\.jsx?$/,
                use: {
                    loader: 'babel-loader',
                    options: {
                        presets: ["@babel/preset-react"]
                    },
                },
                exclude: /node_modules/,
            },
        ]
    },
    plugins: [
        new HtmlWebpackPlugin({
            template: './public/index.html'
        }),
        new ModuleFederationPlugin({
            filename: "remoteEntry.js",
            name: "host",
            remotes: {
                remote: "remote@http://localhost:3000/remoteEntry.js"
            }
        })
    ]
}

1.3.3.2 host\src\index.js #

host\src\index.js

import("./bootstrap");

1.3.3.3 host\src\bootstrap.js #

host\src\bootstrap.js

import React from "react";
import ReactDOM from "react-dom";
import App from "./App";
ReactDOM.render(<App />, document.getElementById("root"));

1.3.3.4 host\src\App.js #

host\src\App.js

import React from "react";
import Slides from './Slides';
const RemoteNewsList = React.lazy(() => import("remote/NewsList"));

const App = () => (
  <div>
    <h2 >本地组件Slides, 远程组件NewsList</h2>
    <Slides />
    <React.Suspense fallback="Loading NewsList">
      <RemoteNewsList />
    </React.Suspense>
  </div>
);
export default App;

1.3.3.5 host\src\Slides.js #

host\src\Slides.js

import React from "react";
export default ()=>(
    <div>轮播图</div>
)

1.4.shared #

• shared配置主要是用来避免项目出现多个公共依赖

1.4.1 remote\webpack.config.js #

    plugins: [
        new HtmlWebpackPlugin({
            template:'./public/index.html'
        }),
        new ModuleFederationPlugin({
            filename: "remoteEntry.js",
            name: "remote",
            exposes: {
                "./NewsList": "./src/NewsList",
            },
+            shared:{
+                react: { singleton: true },
+                "react-dom": { singleton: true }
+              }
          })
    ]

1.4.2 host\webpack.config.js #

    plugins: [
        new HtmlWebpackPlugin({
            template: './public/index.html'
        }),
        new ModuleFederationPlugin({
            filename: "remoteEntry.js",
            name: "host",
            remotes: {
                remote: "remote@http://localhost:3000/remoteEntry.js"
            },
+           shared:{
+                react: { singleton: true },
+                "react-dom": { singleton: true }
+           }
        })
    ]

1.5.双向依赖 #

• Module Federation 的共享可以是双向的

1.5.1 remote\webpack.config.js #

    plugins: [
        new HtmlWebpackPlugin({
            template:'./public/index.html'
        }),
        new ModuleFederationPlugin({
            filename: "remoteEntry.js",
            name: "remote",
+            remotes: {
+                host: "host@http://localhost:8000/remoteEntry.js"
+            },
            exposes: {
                "./NewsList": "./src/NewsList",
            },
            shared:{
                react: { singleton: true },
                "react-dom": { singleton: true }
              }
          })
    ]

1.5.2 host\webpack.config.js #

    plugins: [
        new HtmlWebpackPlugin({
            template: './public/index.html'
        }),
        new ModuleFederationPlugin({
            filename: "remoteEntry.js",
            name: "host",
            remotes: {
                remote: "remote@http://localhost:3000/remoteEntry.js"
            },
+           exposes: {
+                "./Slides": "./src/Slides",
+           },
            shared:{
                react: { singleton: true },
                "react-dom": { singleton: true }
              }
        })
    ]

1.5.3 remote\src\App.js #

remote\src\App.js

import React from "react";
import NewsList from './NewsList';
+const RemoteSlides = React.lazy(() => import("host/Slides"));
const App = () => (
  <div>
+    <h2>本地组件NewsList,远程组件Slides</h2>
    <NewsList />
+    <React.Suspense fallback="Loading Slides">
+      <RemoteSlides />
+    </React.Suspense>
  </div>
);

export default App;

1.6.多个remote #

1.6.1 all\webpack.config.js #

let path = require("path");
let webpack = require("webpack");
let HtmlWebpackPlugin = require("html-webpack-plugin");
const ModuleFederationPlugin = require("webpack/lib/container/ModuleFederationPlugin");
module.exports = {
    mode: "development",
    entry: "./src/index.js",
    output: {
        publicPath: "http://localhost:3000/",
    },
    devServer: {
        port: 5000
    },
    module: {
        rules: [
            {
                test: /\.jsx?$/,
                use: {
                    loader: 'babel-loader',
                    options: {
                        presets: ["@babel/preset-react"]
                    },
                },
                exclude: /node_modules/,
            },
        ]
    },
    plugins: [
        new HtmlWebpackPlugin({
            template:'./public/index.html'
        }),
        new ModuleFederationPlugin({
            filename: "remoteEntry.js",
            name: "all",
            remotes: {
                remote: "remote@http://localhost:3000/remoteEntry.js",
                host: "host@http://localhost:8000/remoteEntry.js",
            },
            shared:{
                react: { singleton: true },
                "react-dom": { singleton: true }
              }
          })
    ]
}

1.6.2 remote\src\index.js #

remote\src\index.js

import("./bootstrap");

1.6.3 remote\src\bootstrap.js #

remote\src\bootstrap.js

import React from "react";
import ReactDOM from "react-dom";
import App from "./App";
ReactDOM.render(<App />, document.getElementById("root"));

1.6.4 remote\src\App.js #

remote\src\App.js

import React from "react";
const RemoteSlides = React.lazy(() => import("host/Slides"));
const RemoteNewsList = React.lazy(() => import("remote/NewsList"));
const App = () => (
  <div>
    <h2>远程组件Slides,远程组件NewsList</h2>
    <React.Suspense fallback="Loading Slides">
      <RemoteSlides />
    </React.Suspense>
    <React.Suspense fallback="Loading NewsList">
      <RemoteNewsList />
    </React.Suspense>
  </div>
);

export default App;

2.模块联邦原理 #

npm install webpack webpack-cli webpack-dev-server html-webpack-plugin -D

2.1 remote #

2.1.1 webpack.config.js #

remote\webpack.config.js

const HtmlWebpackPlugin = require('html-webpack-plugin');
const ModuleFederationPlugin = require('webpack/lib/container/ModuleFederationPlugin');
module.exports = {
  mode: 'development',
  devtool: false,
  entry: './src/index.js',
  devServer: {
    port: 3000
  },
  module: {
    rules: [
      {
        test: /\.js$/,
        use: {
          loader: 'babel-loader',
          options: {
            presets: ['@babel/preset-react']
          }
        }
      }
    ]
  },
  plugins: [
    new HtmlWebpackPlugin({
      template: './src/index.html'
    }),
    new ModuleFederationPlugin({
      filename: 'remoteEntry.js',//向主机提供服务的文件名,构建输出的文件名
      name: 'remote', //var remote;//输出的模块名,作为一个远程容器，向外界提供服务，本质上是通过一个全局变量向外提供服务的
      exposes: {
        './RemoteComponent': './src/RemoteComponent',//被远程引用时可暴露的资源路径及其别名
      }
    })
  ]
}

2.1.2 src\index.js #

remote\src\index.js

import('./bootstrap');

2.1.3 bootstrap.js #

remote\src\bootstrap.js

import RemoteComponent from './RemoteComponent'
console.log(RemoteComponent);

2.1.4 RemoteComponent.js #

remote\src\RemoteComponent.js

export default 'RemoteComponent'

2.1.5 index.html #

remote\src\index.html

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <meta http-equiv="X-UA-Compatible" content="IE=edge">
  <meta name="viewport" content="width=device-width, initial-scale=1.0">
  <title>remote</title>
</head>
<body>
</body>
</html>

2.1.6 index.html #

remote\hand\index.html

<!DOCTYPE html>
<html lang="en">

<head>
  <meta charset="UTF-8">
  <meta http-equiv="X-UA-Compatible" content="IE=edge">
  <meta name="viewport" content="width=device-width, initial-scale=1.0">
  <title>remote</title>
<script defer src="main.js"></script></head>

<body>

</body>

</html>

2.1.7 main.js #

remote\hand\main.js

(() => {
  var modules = {};
  function require(moduleId) {
    var module = {
      exports: {}
    };
    modules[moduleId](module, module.exports, require);
    return module.exports;
  }
  require.m = modules;
  require.d = (exports, definition) => {
    for (var key in definition) {
      Object.defineProperty(exports, key, {
        enumerable: true,
        get: definition[key]
      });
    }
  };
  require.f = {};
  require.e = chunkId => {
    return Promise.all(Object.keys(require.f).reduce((promises, key) => {
      require.f[key](chunkId, promises);
      return promises;
    }, []));
  };
  require.u = chunkId => {
    return "" + chunkId + ".js";
  };
  require.g = window;
  require.o = (obj, prop) => Object.prototype.hasOwnProperty.call(obj, prop);
  require.l = url => {
    let script = document.createElement('script');
    script.src = url;
    document.head.appendChild(script);
  };
  require.r = exports => {
    Object.defineProperty(exports, '__esModule', {
      value: true
    });
  };
  require.p = '';
  var installedChunks = {
    "main": 0
  };
  require.f.j = (chunkId, promises) => {
    var installedChunkData;
    var promise = new Promise((resolve, reject) => installedChunkData = installedChunks[chunkId] = [resolve, reject]);
    promises.push(installedChunkData[2] = promise);
    var url = require.p + require.u(chunkId);
    require.l(url);
  };
  var webpackJsonpCallback = data => {
    var [chunkIds, moreModules] = data;
    var moduleId,
      chunkId,
      i = 0;
    for (moduleId in moreModules) {
      if (require.o(moreModules, moduleId)) {
        require.m[moduleId] = moreModules[moduleId];
      }
    }
    for (; i < chunkIds.length; i++) {
      chunkId = chunkIds[i];
      if (require.o(installedChunks, chunkId) && installedChunks[chunkId]) {
        installedChunks[chunkId][0]();
      }
      installedChunks[chunkId] = 0;
    }
  };
  var chunkLoadingGlobal = self["webpackChunkremote"] = self["webpackChunkremote"] || [];
  chunkLoadingGlobal.push = webpackJsonpCallback;
  require.e("src_bootstrap_js").then(() => {
    require("./src/bootstrap.js")
  });
})();

2.1.8 src_bootstrap_js.js #

remote\hand\src_bootstrap_js.js

"use strict";
(self["webpackChunkremote"] = self["webpackChunkremote"] || []).push([["src_bootstrap_js"], {
  "./src/RemoteComponent.js": (module, exports, require) => {
    require.r(exports);
    require.d(exports, {
      "default": () => _DEFAULT_EXPORT__
    });
    const _DEFAULT_EXPORT__ = 'RemoteComponent';
  },
  "./src/bootstrap.js": (module, exports, require) => {
    require.r(exports);
    var RemoteComponent = require("./src/RemoteComponent.js");
    console.log(RemoteComponent.default);
  }
}]);

2.1.9 remoteEntry.js #

remote\hand\remoteEntry.js

var remote;
(() => {
    var modules = {};
    function require(moduleId) {
        var module = {
            exports: {}
        };
        modules[moduleId](module, module.exports, require);
        return module.exports;
    }
    require.m = modules;
    require.d = (exports, definition) => {
        for (var key in definition) {
            Object.defineProperty(exports, key, {
                enumerable: true,
                get: definition[key]
            });
        }
    };
    require.f = {};
    require.e = chunkId => {
        return Promise.all(Object.keys(require.f).reduce((promises, key) => {
            require.f[key](chunkId, promises);
            return promises;
        }, []));
    };
    require.u = chunkId => {
        return "" + chunkId + ".js";
    };
    require.g = window;
    require.o = (obj, prop) => Object.prototype.hasOwnProperty.call(obj, prop);
    require.l = url => {
        let script = document.createElement('script');
        script.src = url;
        document.head.appendChild(script);
    };
    require.r = exports => {
        Object.defineProperty(exports, '__esModule', {
            value: true
        });
    };
    scriptUrl = document.currentScript.src;
    require.p = scriptUrl.replace(/\/[^\/]+$/, "/");
    var installedChunks = {
        "remote": 0
    };
    require.f.j = (chunkId, promises) => {
        var installedChunkData;
        var promise = new Promise((resolve, reject) => installedChunkData = installedChunks[chunkId] = [resolve, reject]);
        promises.push(installedChunkData[2] = promise);
        var url = require.p + require.u(chunkId);
        require.l(url);
    };
    var webpackJsonpCallback = data => {
        var [chunkIds, moreModules] = data;
        var moduleId, chunkId, i = 0;
        for (moduleId in moreModules) {
            if (require.o(moreModules, moduleId)) {
                require.m[moduleId] = moreModules[moduleId];
            }
        }
        for (; i < chunkIds.length; i++) {
            chunkId = chunkIds[i];
            if (require.o(installedChunks, chunkId) && installedChunks[chunkId]) {
                installedChunks[chunkId][0]();
            }
            installedChunks[chunkId] = 0;
        }
    };
    var chunkLoadingGlobal = self["webpackChunkremote"] = self["webpackChunkremote"] || [];
    chunkLoadingGlobal.push = webpackJsonpCallback;
    var exports = {};
    var moduleMap = {
        "./RemoteComponent": () => {
            return require.e("src_RemoteComponent_js").then(() => () => require("./src/RemoteComponent.js"));
        }
    };
    var get = (module) => {
        return moduleMap[module]();
    };
    require.d(exports, {
        get: () => get
    });
    remote = exports;
})();

2.1.10 src_RemoteComponent_js.js #

remote\hand\src_RemoteComponent_js.js

(self["webpackChunkremote"] = self["webpackChunkremote"] || []).push([["src_RemoteComponent_js"], {
  "./src/RemoteComponent.js": (module, exports, require) => {
    require.r(exports);
    require.d(exports, {
      "default": () => _DEFAULT_EXPORT__
    });
    const _DEFAULT_EXPORT__ = 'RemoteComponent';
  }
}]);

2.2 host #

2.2.1 webpack.config.js #

remote\webpack.config.js

const webpack = require('webpack');
const path = require('path');
const HtmlWebpackPlugin = require('html-webpack-plugin');
const ModuleFederationPlugin = require('webpack/lib/container/ModuleFederationPlugin');
module.exports = {
  mode: 'development',
  devtool: false,
  entry: './src/index.js',
  output: {
    //publicPath: 'http://localhost:3000'
    //publicPath: '/'
    //publicPath: ''
  },
  devServer: {
    port: 8000
  },
  plugins: [
    new HtmlWebpackPlugin({
      template: './src/index.html'
    }),
    new ModuleFederationPlugin({
      //远程引用的应用名及其别名的映射，使用时以key值作为name
      remotes: {
        remote: 'remote@http://127.0.0.1:3000/remoteEntry.js'//被远程引用时可暴露的资源路径及其别名
      }
    })
  ]
}

2.2.2 src\index.js #

remote\src\index.js

import('./bootstrap');

2.2.3 bootstrap.js #

remote\src\bootstrap.js

import RemoteComponent from './RemoteComponent'
console.log(RemoteComponent);

2.2.4 RemoteComponent.js #

remote\src\RemoteComponent.js

export default 'RemoteComponent'

2.2.5 index.html #

host\hand\index.html

<!DOCTYPE html>
<html lang="en">

<head>
  <meta charset="UTF-8">
  <meta http-equiv="X-UA-Compatible" content="IE=edge">
  <meta name="viewport" content="width=device-width, initial-scale=1.0">
  <title>remote</title>
<script defer src="main.js"></script></head>

<body>

</body>

</html>

2.2.6 main.js #

host\hand\main.js

(() => {
    var modules = {
        "webpack/container/reference/remote": (module, exports, require) => {
            module.exports = new Promise(resolve => {
                if (typeof remote !== "undefined") return resolve();
                require.l("http://127.0.0.1:3000/remoteEntry.js", resolve);
            }).then(() => remote);
        }
    };
    function require(moduleId) {
        var module = {
            exports: {}
        };
        modules[moduleId](module, module.exports, require);
        return module.exports;
    }
    require.m = modules;
    require.d = (exports, definition) => {
        for (var key in definition) {
            Object.defineProperty(exports, key, {
                enumerable: true,
                get: definition[key]
            });
        }
    };
    require.f = {};
    require.e = chunkId => {
        return Promise.all(Object.keys(require.f).reduce((promises, key) => {
            require.f[key](chunkId, promises);
            return promises;
        }, []));
    };
    require.u = chunkId => {
        return "" + chunkId + ".js";
    };
    require.g = window;
    require.o = (obj, prop) => Object.prototype.hasOwnProperty.call(obj, prop);
    require.l = (url, done) => {
        let script = document.createElement('script');
        script.src = url;
        script.onload = done;
        document.head.appendChild(script);
    };
    require.r = exports => {
        Object.defineProperty(exports, '__esModule', {
            value: true
        });
    };
    var chunkMapping = {
        "webpack_container_remote_remote_RemoteComponent": ["webpack/container/remote/remote/RemoteComponent"]
    };
    var idToExternalAndNameMapping = {
        "webpack/container/remote/remote/RemoteComponent": ["default", "./RemoteComponent", "webpack/container/reference/remote"]
    };
    require.f.remotes = (chunkId, promises) => {
        if (require.o(chunkMapping, chunkId)) {
            chunkMapping[chunkId].forEach(id => {
                var data = idToExternalAndNameMapping[id];
                var promise = require(data[2]).then(external => {
                    return external.get(data[1]);
                }).then(factory => {
                    require.m[id] = module => {
                        module.exports = factory();
                    };
                });
                promises.push(promise);
            });
        }
    };
    scriptUrl = document.currentScript.src;
    require.p = scriptUrl.replace(/\/[^\/]+$/, "/");
    var installedChunks = {
        "main": 0
    };
    require.f.j = (chunkId, promises) => {
        var installedChunkData;
        if ("webpack_container_remote_remote_RemoteComponent" !== chunkId) {
            var promise = new Promise((resolve, reject) => installedChunkData = installedChunks[chunkId] = [resolve, reject]);
            promises.push(installedChunkData[2] = promise);
            var url = require.p + require.u(chunkId);
            require.l(url);
        }
    };
    var webpackJsonpCallback = data => {
        var [chunkIds, moreModules] = data;
        var moduleId,
            chunkId,
            i = 0;
        if (chunkIds.some(id => installedChunks[id] !== 0)) {
            for (moduleId in moreModules) {
                if (require.o(moreModules, moduleId)) {
                    require.m[moduleId] = moreModules[moduleId];
                }
            }
        }
        for (; i < chunkIds.length; i++) {
            chunkId = chunkIds[i];
            if (require.o(installedChunks, chunkId) && installedChunks[chunkId]) {
                installedChunks[chunkId][0]();
            }
            installedChunks[chunkId] = 0;
        }
    };
    var chunkLoadingGlobal = self["webpackChunkhost"] = self["webpackChunkhost"] || [];
    chunkLoadingGlobal.push = webpackJsonpCallback;
    require.e("src_bootstrap_js").then(() => require("./src/bootstrap.js"));
})();

2.2.7 src_bootstrap_js.js #

host\hand\src_bootstrap_js.js

(self["webpackChunkhost"] = self["webpackChunkhost"] || []).push([["src_bootstrap_js"], {
  "./src/bootstrap.js": (module, exports, require) => {
    require.e("webpack_container_remote_remote_RemoteComponent").then(() => require("webpack/container/remote/remote/RemoteComponent")).then(result => {
      console.log(result.default);
    });
  }
}]);

3.share #

• webpack_require.f.j 利用script标签去加载其他js文件
• webpack_require.f.remotes 加载remote入口文件，然后将remote模块关联到runtime中
• webpack_require.f.consumes：让当前share的模块，关联到runtime中

3.1 remote #

3.1.1 src\index.js #

remote\src\index.js

import('./bootstrap');

3.1.2 bootstrap.js #

remote\src\bootstrap.js

import RemoteComponent from './RemoteComponent'
import isArray from 'check-is-array';
console.log(RemoteComponent, isArray);

2.1.3 RemoteComponent.js #

remote\src\RemoteComponent.js

export default 'RemoteComponent'

3.1.4 main.js #

remote\hand\main.js

(() => {
  var modules = {
    "./src/index.js": (module, exports, require) => {
      require.e("src_bootstrap_js").then(require.bind(require, "./src/bootstrap.js"));
    }
  };
  function require(moduleId) {
    var module = {
      exports: {}
    };
    modules[moduleId](module, module.exports, require);
    return module.exports;
  }
  require.m = modules;
  require.n = module => {
    var getter = module && module.__esModule ? () => module['default'] : () => module;
    require.d(getter, {
      a: getter
    });
    return getter;
  };
  require.d = (exports, definition) => {
    for (var key in definition) {
      Object.defineProperty(exports, key, {
        enumerable: true,
        get: definition[key]
      });
    }
  };
  require.f = {};
  require.e = chunkId => {
    return Promise.all(Object.keys(require.f).reduce((promises, key) => {
      require.f[key](chunkId, promises);
      return promises;
    }, []));
  };
  require.u = chunkId => {
    return "" + chunkId + ".js";
  };
  require.g = window;
  require.o = (obj, prop) => Object.prototype.hasOwnProperty.call(obj, prop);
  require.l = (url, done) => {
    var script = document.createElement('script');
    script.src = url;
    script.onload = done;
    document.head.appendChild(script);
  };
  require.r = exports => {
    Object.defineProperty(exports, '__esModule', { value: true });
  };
  require.S = {};
  require.I = (name) => {
    if (!require.o(require.S, name)) require.S[name] = {};
    var scope = require.S[name];
    var uniqueName = "remote";
    var register = (name, version, factory) => {
      var versions = scope[name] = scope[name] || {};
      var activeVersion = versions[version];
      if (!activeVersion)
        versions[version] = {
          get: factory,
          from: uniqueName
        };
    };
    var promises = [];
    switch (name) {
      case "default":
        {
          register("check-is-array", "2.0.6", () => require.e("node_modules_check-is-array_index_js").then(() => () => require("./node_modules/check-is-array/index.js")));
        }
        break;
    }
    return Promise.all(promises);
  };
  require.p = document.currentScript.src.replace(/\/[^\/]+$/, "/");
  var parseVersion = str => {
    var p = p => {
      return p.split(".").map(p => {
        return +p == p ? +p : p;
      });
    },
      n = /^([^-+]+)?(?:-([^+]+))?(?:\+(.+))?$/.exec(str),
      r = n[1] ? p(n[1]) : [];
    return n[2] && (r.length++, r.push.apply(r, p(n[2]))), n[3] && (r.push([]), r.push.apply(r, p(n[3]))), r;
  };
  var versionLt = (a, b) => {
    a = parseVersion(a), b = parseVersion(b);
    for (var r = 0; ;) {
      if (r >= a.length) return r < b.length && "u" != (typeof b[r])[0];
      var e = a[r],
        n = (typeof e)[0];
      if (r >= b.length) return "u" == n;
      var t = b[r],
        f = (typeof t)[0];
      if (n != f) return "o" == n && "n" == f || "s" == f || "u" == n;
      if ("o" != n && "u" != n && e != t) return e < t;
      r++;
    }
  };
  var rangeToString = range => {
    var r = range[0],
      n = "";
    if (1 === range.length) return "*";
    if (r + .5) {
      n += 0 == r ? ">=" : -1 == r ? "<" : 1 == r ? "^" : 2 == r ? "~" : r > 0 ? "=" : "!=";
      for (var e = 1, a = 1; a < range.length; a++) {
        e--, n += "u" == (typeof (t = range[a]))[0] ? "-" : (e > 0 ? "." : "") + (e = 2, t);
      }
      return n;
    }
    var g = [];
    for (a = 1; a < range.length; a++) {
      var t = range[a];
      g.push(0 === t ? "not(" + o() + ")" : 1 === t ? "(" + o() + " || " + o() + ")" : 2 === t ? g.pop() + " " + g.pop() : rangeToString(t));
    }
    return o();
    function o() {
      return g.pop().replace(/^$(.+)$$/, "$1");
    }
  };
  var satisfy = (range, version) => {
    if (0 in range) {
      version = parseVersion(version);
      var e = range[0],
        r = e < 0;
      r && (e = -e - 1);
      for (var n = 0, i = 1, a = !0; ; i++, n++) {
        var f,
          s,
          g = i < range.length ? (typeof range[i])[0] : "";
        if (n >= version.length || "o" == (s = (typeof (f = version[n]))[0])) return !a || ("u" == g ? i > e && !r : "" == g != r);
        if ("u" == s) {
          if (!a || "u" != g) return !1;
        } else if (a) {
          if (g == s) {
            if (i <= e) {
              if (f != range[i]) return !1;
            } else {
              if (r ? f > range[i] : f < range[i]) return !1;
              f != range[i] && (a = !1);
            }
          } else if ("s" != g && "n" != g) {
            if (r || i <= e) return !1;
            a = !1, i--;
          } else {
            if (i <= e || s < g != r) return !1;
            a = !1;
          }
        } else "s" != g && "n" != g && (a = !1, i--);
      }
    }
    var t = [],
      o = t.pop.bind(t);
    for (n = 1; n < range.length; n++) {
      var u = range[n];
      t.push(1 == u ? o() | o() : 2 == u ? o() & o() : u ? satisfy(u, version) : !o());
    }
    return !!o();
  };
  var findSingletonVersionKey = (scope, key) => {
    var versions = scope[key];
    return Object.keys(versions).reduce((a, b) => {
      return !a || !versions[a].loaded && versionLt(a, b) ? b : a;
    }, 0);
  };
  var getInvalidSingletonVersionMessage = (scope, key, version, requiredVersion) => {
    return "Unsatisfied version " + version + " from " + (version && scope[key][version].from) + " of shared singleton module " + key + " (required " + rangeToString(requiredVersion) + ")";
  };
  var getSingletonVersion = (scope, scopeName, key, requiredVersion) => {
    var version = findSingletonVersionKey(scope, key);
    if (!satisfy(requiredVersion, version))
      console.warn(getInvalidSingletonVersionMessage(scope, key, version, requiredVersion));
    return get(scope[key][version]);
  };
  var get = entry => {
    entry.loaded = 1;
    return entry.get();
  };
  var init = fn => function (scopeName, key, version, fallback) {
    var promise = require.I(scopeName);
    return promise.then(() => fn(scopeName, require.S[scopeName], key, version, fallback));
  };
  var loadSingletonVersionCheckFallback = init((scopeName, scope, key, version, fallback) => {
    if (!scope || !require.o(scope, key)) return fallback();
    return getSingletonVersion(scope, scopeName, key, version);
  });
  var installedModules = {};
  var moduleToHandlerMapping = {
    "webpack/sharing/consume/default/check-is-array/check-is-array": () => loadSingletonVersionCheckFallback("default", "check-is-array", [1, 2, 0, 6], () => require.e("node_modules_check-is-array_index_js").then(() => () => require("./node_modules/check-is-array/index.js")))
  };
  var chunkMapping = {
    "src_bootstrap_js": ["webpack/sharing/consume/default/check-is-array/check-is-array"]
  };
  require.f.consumes = (chunkId, promises) => {
    if (require.o(chunkMapping, chunkId)) {
      chunkMapping[chunkId].forEach(id => {
        if (require.o(installedModules, id)) return promises.push(installedModules[id]);
        var onFactory = factory => {
          installedModules[id] = 0;
          require.m[id] = module => {
            module.exports = factory();
          };
        };
        var promise = moduleToHandlerMapping[id]();
        if (promise.then) {
          promises.push(installedModules[id] = promise.then(onFactory));
        } else onFactory(promise);
      });
    }
  };
  var installedChunks = {
    "main": 0
  };
  require.f.j = (chunkId, promises) => {
    var installedChunkData;
    var promise = new Promise((resolve, reject) => installedChunkData = installedChunks[chunkId] = [resolve, reject]);
    promises.push(installedChunkData[2] = promise);
    var url = require.p + require.u(chunkId);
    require.l(url);
  };
  var webpackJsonpCallback = (data) => {
    var [chunkIds, moreModules] = data;
    var moduleId, chunkId, i = 0;
    for (moduleId in moreModules) {
      if (require.o(moreModules, moduleId)) {
        require.m[moduleId] = moreModules[moduleId];
      }
    }
    for (; i < chunkIds.length; i++) {
      chunkId = chunkIds[i];
      if (require.o(installedChunks, chunkId) && installedChunks[chunkId]) {
        installedChunks[chunkId][0]();
      }
      installedChunks[chunkId] = 0;
    }
  };
  var chunkLoadingGlobal = self["webpackChunkremote"] = self["webpackChunkremote"] || [];
  chunkLoadingGlobal.push = webpackJsonpCallback;
  require("./src/index.js");
})();

3.1.5 node_modules_check-is-array_index_js.js #

remote\hand\node_modules_check-is-array_index_js.js

"use strict";
(self["webpackChunkremote"] = self["webpackChunkremote"] || []).push([["node_modules_check-is-array_index_js"], {
  "./node_modules/check-is-array/index.js": (module, exports, require) => {
    require.r(exports);
    require.d(exports, {
      "default": () => _DEFAULT_EXPORT__
    });
    const _DEFAULT_EXPORT__ = Array.isArray;
  }
}]);

3.1.6 remoteEntry.js #

remote\hand\remoteEntry.js

var remote;
(() => {
    var modules = {
        "webpack/container/entry/remote": (module, exports, require) => {
            var moduleMap = {
                "./RemoteComponent": () => {
                    return require.e("src_RemoteComponent_js").then(() => () => require("./src/RemoteComponent.js"));
                }
            };
            var get = module => {
                return moduleMap[module]();
            };
            var init = shareScope => {
                if (!require.S) return;
                var name = "default";
                require.S[name] = shareScope;
                return require.I(name);
            };
            require.d(exports, {
                get: () => get,
                init: () => init
            });
        }
    };
    function require(moduleId) {
        var module = {
            exports: {}
        };
        modules[moduleId](module, module.exports, require);
        return module.exports;
    }
    require.m = modules;
    require.d = (exports, definition) => {
        for (var key in definition) {
            Object.defineProperty(exports, key, {
                enumerable: true,
                get: definition[key]
            });
        }
    };
    require.f = {};
    require.e = chunkId => {
        return Promise.all(Object.keys(require.f).reduce((promises, key) => {
            require.f[key](chunkId, promises);
            return promises;
        }, []));
    };
    require.u = chunkId => {
        return "" + chunkId + ".js";
    };
    require.g = window;
    require.o = (obj, prop) => Object.prototype.hasOwnProperty.call(obj, prop);
    require.l = (url, done) => {
        var script = document.createElement('script');
        script.src = url;
        script.onload = done;
        document.head.appendChild(script);
    };
    require.r = exports => {
        Object.defineProperty(exports, '__esModule', { value: true });
    };
    require.S = {};
    require.I = (name) => {
        if (!require.o(require.S, name)) require.S[name] = {};
        var scope = require.S[name];
        var uniqueName = "remote";
        var register = (name, version, factory) => {
            var versions = scope[name] = scope[name] || {};
            var activeVersion = versions[version];
            if (!activeVersion)
                versions[version] = {
                    get: factory,
                    from: uniqueName
                };
        };
        switch (name) {
            case "default":
                {
                    register("check-is-array", "2.0.6", () => require.e("node_modules_check-is-array_index_js").then(() => () => require("./node_modules/check-is-array/index.js")));
                }
                break;
        }
    };
    require.p = document.currentScript.src.replace(/\/[^\/]+$/, "/");
    var installedChunks = {
        "remote": 0
    };
    require.f.j = (chunkId, promises) => {
        var installedChunkData;
        var promise = new Promise((resolve, reject) => installedChunkData = installedChunks[chunkId] = [resolve, reject]);
        promises.push(installedChunkData[2] = promise);
        var url = require.p + require.u(chunkId);
        require.l(url);
    };
    var webpackJsonpCallback = (data) => {
        var [chunkIds, moreModules] = data;
        var moduleId, chunkId, i = 0;
        for (moduleId in moreModules) {
            if (require.o(moreModules, moduleId)) {
                require.m[moduleId] = moreModules[moduleId];
            }
        }
        for (; i < chunkIds.length; i++) {
            chunkId = chunkIds[i];
            if (require.o(installedChunks, chunkId) && installedChunks[chunkId]) {
                installedChunks[chunkId][0]();
            }
            installedChunks[chunkId] = 0;
        }
    };
    var chunkLoadingGlobal = self["webpackChunkremote"] = self["webpackChunkremote"] || [];
    chunkLoadingGlobal.push = webpackJsonpCallback;
    var exports = require("webpack/container/entry/remote");
    remote = exports;
})();

3.1.7 src_bootstrap_js.js #

remote\hand\src_bootstrap_js.js

"use strict";
(self["webpackChunkremote"] = self["webpackChunkremote"] || []).push([["src_bootstrap_js"], {
  "./src/RemoteComponent.js": (module, exports, require) => {
    require.r(exports);
    require.d(exports, {
      "default": () => _DEFAULT_EXPORT__
    });
    const _DEFAULT_EXPORT__ = 'RemoteComponent';
  },
  "./src/bootstrap.js": (module, exports, require) => {
    require.r(exports);
    var _RemoteComponent_0__ = require("./src/RemoteComponent.js");
    var check_is_array_1__ = require("webpack/sharing/consume/default/check-is-array/check-is-array");
    var check_is_array_1___default = require.n(check_is_array_1__);
    console.log(_RemoteComponent_0__["default"], check_is_array_1___default());
  }
}]);

3.1.8 src_RemoteComponent_js.js #

remote\hand\src_RemoteComponent_js.js

"use strict";
(self["webpackChunkremote"] = self["webpackChunkremote"] || []).push([["src_RemoteComponent_js"], {
  "./src/RemoteComponent.js": (module, exports, require) => {
    require.r(exports);
    require.d(exports, {
      "default": () => _DEFAULT_EXPORT__
    });
    const _DEFAULT_EXPORT__ = 'RemoteComponent';
  }
}]);

3.2 host #

3.2.1 src\index.js #

host\src\index.js

import('./bootstrap');

3.2.2 bootstrap.js #

host\src\bootstrap.js

import isArray from 'check-is-array';
import("remote/RemoteComponent").then(result => {
    console.log(result.default, isArray);
});

3.2.3 main.js #

host\hand\main.js

(() => {
    var modules = {
        "./src/index.js": (module, exports, require) => {
            require.e("src_bootstrap_js").then(() => require("./src/bootstrap.js"));
        },
        "webpack/container/reference/remote": (module, exports, require) => {
            module.exports = new Promise(resolve => {
                if (typeof remote !== "undefined") return resolve();
                require.l("http://127.0.0.1:3001/remoteEntry.js", resolve);
            }).then(() => remote);
        }
    };
    function require(moduleId) {
        var module = {
            exports: {}
        };
        modules[moduleId](module, module.exports, require);
        return module.exports;
    }
    require.m = modules;
    require.n = module => {
        var getter = module && module.__esModule ? () => module['default'] : () => module;
        require.d(getter, {
            a: getter
        });
        return getter;
    };
    require.d = (exports, definition) => {
        for (var key in definition) {
            Object.defineProperty(exports, key, {
                enumerable: true,
                get: definition[key]
            });
        }
    };
    require.f = {};
    require.e = chunkId => {
        return Promise.all(Object.keys(require.f).reduce((promises, key) => {
            require.f[key](chunkId, promises);
            return promises;
        }, []));
    };
    require.u = chunkId => {
        return "" + chunkId + ".js";
    };
    require.g = window;
    require.o = (obj, prop) => Object.prototype.hasOwnProperty.call(obj, prop);
    require.l = (url, done) => {
        let script = document.createElement('script');
        script.src = url;
        script.onload = done;
        document.head.appendChild(script);
    };
    require.r = exports => {
        Object.defineProperty(exports, '__esModule', {
            value: true
        });
    };
    (() => {
        var chunkMapping = {
            "webpack_container_remote_remote_RemoteComponent": ["webpack/container/remote/remote/RemoteComponent"]
        };
        var idToExternalAndNameMapping = {
            "webpack/container/remote/remote/RemoteComponent": ["default", "./RemoteComponent", "webpack/container/reference/remote"]
        };
        require.f.remotes = (chunkId, promises) => {
            if (require.o(chunkMapping, chunkId)) {
                chunkMapping[chunkId].forEach(id => {
                    var [, moduleId, remoteModuleId] = idToExternalAndNameMapping[id];
                    var promise = require(remoteModuleId).then(remoteModule => {
                        return remoteModule.get(moduleId);
                    }).then(factory => {
                        require.m[id] = module => {
                            module.exports = factory();
                        };
                    });
                    promises.push(promise);
                });
            }
        };
    })()
    require.S = {};
    require.I = (name) => {
        if (!require.o(require.S, name)) require.S[name] = {};
        var scope = require.S[name];
        var uniqueName = "host";
        var register = (name, version, factory) => {
            var versions = scope[name] = scope[name] || {};
            var activeVersion = versions[version];
            if (!activeVersion) versions[version] = {
                get: factory,
                from: uniqueName
            };
        };
        var promises = [];
        var initExternal = id => {
            var module = require(id);
            promises.push(module.then(module => module.init(require.S[name])));
        };
        switch (name) {
            case "default":
                {
                    register("check-is-array", "2.0.6", () => require.e("node_modules_check-is-array_index_js").then(() => () => require("./node_modules/check-is-array/index.js")));
                    initExternal("webpack/container/reference/remote");
                }
                break;
        }
        return Promise.all(promises);
    };
    require.p = document.currentScript.src.replace(/\/[^\/]+$/, "/");
    var parseVersion = str => {
        var p = p => {
            return p.split(".").map(p => {
                return +p == p ? +p : p;
            });
        },
            n = /^([^-+]+)?(?:-([^+]+))?(?:\+(.+))?$/.exec(str),
            r = n[1] ? p(n[1]) : [];
        return n[2] && (r.length++, r.push.apply(r, p(n[2]))), n[3] && (r.push([]), r.push.apply(r, p(n[3]))), r;
    };
    var versionLt = (a, b) => {
        a = parseVersion(a), b = parseVersion(b);
        for (var r = 0; ;) {
            if (r >= a.length) return r < b.length && "u" != (typeof b[r])[0];
            var e = a[r],
                n = (typeof e)[0];
            if (r >= b.length) return "u" == n;
            var t = b[r],
                f = (typeof t)[0];
            if (n != f) return "o" == n && "n" == f || "s" == f || "u" == n;
            if ("o" != n && "u" != n && e != t) return e < t;
            r++;
        }
    };
    var rangeToString = range => {
        var r = range[0],
            n = "";
        if (1 === range.length) return "*";
        if (r + .5) {
            n += 0 == r ? ">=" : -1 == r ? "<" : 1 == r ? "^" : 2 == r ? "~" : r > 0 ? "=" : "!=";
            for (var e = 1, a = 1; a < range.length; a++) {
                e--, n += "u" == (typeof (t = range[a]))[0] ? "-" : (e > 0 ? "." : "") + (e = 2, t);
            }
            return n;
        }
        var g = [];
        for (a = 1; a < range.length; a++) {
            var t = range[a];
            g.push(0 === t ? "not(" + o() + ")" : 1 === t ? "(" + o() + " || " + o() + ")" : 2 === t ? g.pop() + " " + g.pop() : rangeToString(t));
        }
        return o();
        function o() {
            return g.pop().replace(/^$(.+)$$/, "$1");
        }
    };
    var satisfy = (range, version) => {
        if (0 in range) {
            version = parseVersion(version);
            var e = range[0],
                r = e < 0;
            r && (e = -e - 1);
            for (var n = 0, i = 1, a = !0; ; i++, n++) {
                var f,
                    s,
                    g = i < range.length ? (typeof range[i])[0] : "";
                if (n >= version.length || "o" == (s = (typeof (f = version[n]))[0])) return !a || ("u" == g ? i > e && !r : "" == g != r);
                if ("u" == s) {
                    if (!a || "u" != g) return !1;
                } else if (a) {
                    if (g == s) {
                        if (i <= e) {
                            if (f != range[i]) return !1;
                        } else {
                            if (r ? f > range[i] : f < range[i]) return !1;
                            f != range[i] && (a = !1);
                        }
                    } else if ("s" != g && "n" != g) {
                        if (r || i <= e) return !1;
                        a = !1, i--;
                    } else {
                        if (i <= e || s < g != r) return !1;
                        a = !1;
                    }
                } else "s" != g && "n" != g && (a = !1, i--);
            }
        }
        var t = [],
            o = t.pop.bind(t);
        for (n = 1; n < range.length; n++) {
            var u = range[n];
            t.push(1 == u ? o() | o() : 2 == u ? o() & o() : u ? satisfy(u, version) : !o());
        }
        return !!o();
    };
    var findSingletonVersionKey = (scope, key) => {
        var versions = scope[key];
        return Object.keys(versions).reduce((a, b) => {
            return !a || !versions[a].loaded && versionLt(a, b) ? b : a;

        }, 0);
    };
    var getInvalidSingletonVersionMessage = (scope, key, version, requiredVersion) => {
        return "Unsatisfied version " + version + " from " + (version && scope[key][version].from) + " of shared singleton module " + key + " (required " + rangeToString(requiredVersion) + ")";
    };
    var getSingletonVersion = (scope, scopeName, key, requiredVersion) => {
        var version = findSingletonVersionKey(scope, key);
        if (!satisfy(requiredVersion, version))
            console.warn(getInvalidSingletonVersionMessage(scope, key, version, requiredVersion));
        return get(scope[key][version]);
    };
    var get = entry => {
        entry.loaded = 1;
        return entry.get();
    };
    var init = fn => function (scopeName, key, version, fallback) {
        var promise = require.I(scopeName);
        return promise.then(() => fn(scopeName, require.S[scopeName], key, version, fallback));
    };
    var loadSingletonVersionCheckFallback = init((scopeName, scope, key, version, fallback) => {
        if (!scope || !require.o(scope, key)) return fallback();
        return getSingletonVersion(scope, scopeName, key, version);
    });
    var moduleToHandlerMapping = {
        "webpack/sharing/consume/default/check-is-array/check-is-array": () => loadSingletonVersionCheckFallback('default', "check-is-array", [1, 2, 0, 6], () => require.e("node_modules_check-is-array_index_js").then(() => () => require("./node_modules/check-is-array/index.js")))
    };
    var chunkMapping = {
        "src_bootstrap_js": ["webpack/sharing/consume/default/check-is-array/check-is-array"]
    };
    require.f.consumes = (chunkId, promises) => {
        if (require.o(chunkMapping, chunkId)) {
            chunkMapping[chunkId].forEach(id => {
                var onFactory = factory => {
                    require.m[id] = module => {
                        module.exports = factory();
                    };
                };
                var promise = moduleToHandlerMapping[id]();
                promises.push(promise.then(onFactory));
            });
        }
    };
    var installedChunks = {
        "main": 0
    };
    require.f.j = (chunkId, promises) => {
        var installedChunkData;
        if ("webpack_container_remote_remote_RemoteComponent" !== chunkId) {
            var promise = new Promise((resolve, reject) => installedChunkData = installedChunks[chunkId] = [resolve, reject]);
            promises.push(installedChunkData[2] = promise);
            var url = require.p + require.u(chunkId);
            require.l(url);
        }
    };
    var webpackJsonpCallback = data => {
        var [chunkIds, moreModules] = data;
        var moduleId,
            chunkId,
            i = 0;
        if (chunkIds.some(id => installedChunks[id] !== 0)) {
            for (moduleId in moreModules) {
                if (require.o(moreModules, moduleId)) {
                    require.m[moduleId] = moreModules[moduleId];
                }
            }
        }
        for (; i < chunkIds.length; i++) {
            chunkId = chunkIds[i];
            if (require.o(installedChunks, chunkId) && installedChunks[chunkId]) {
                installedChunks[chunkId][0]();
            }
            installedChunks[chunkId] = 0;
        }
    };
    var chunkLoadingGlobal = self["webpackChunkhost"] = self["webpackChunkhost"] || [];
    chunkLoadingGlobal.push = webpackJsonpCallback;
    require("./src/index.js");
})();

3.2.4 node_modules_check-is-array_index_js.js #

host\hand\node_modules_check-is-array_index_js.js

(self["webpackChunkhost"] = self["webpackChunkhost"] || []).push([["node_modules_check-is-array_index_js"], {
  "./node_modules/check-is-array/index.js": (module, exports, require) => {
    require.r(exports);
    require.d(exports, {
      "default": () => _DEFAULT_EXPORT__
    });
    const _DEFAULT_EXPORT__ = Array.isArray;
  }
}]);

3.2.5 src_bootstrap_js.js #

host\hand\src_bootstrap_js.js

(self["webpackChunkhost"] = self["webpackChunkhost"] || []).push([["src_bootstrap_js"], {
  "./src/bootstrap.js": (module, exports, require) => {
    require.r(exports);
    var check_is_array_0__ = require("webpack/sharing/consume/default/check-is-array/check-is-array");
    var check_is_array_0___default = require.n(check_is_array_0__);
    require.e("webpack_container_remote_remote_RemoteComponent").then(() => require("webpack/container/remote/remote/RemoteComponent")).then(result => {
      console.log(result.default, check_is_array_0___default());
    });
  }
}]);
